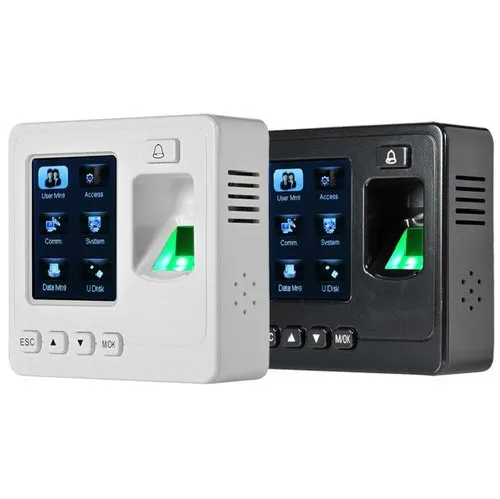

ZKTeco SF100 Access Control System
Fingerprint-based access control with 1001-2000 user capacity. The ZKTeco SF100 is an IP-based standalone fingerprint access control terminal designed for secure door access and employee attendance management. Supporting fingerprint authentication, RFID card verification, and password access, the device offers fast and reliable biometric verification. Equipped with a 2.4-inch TFT color display, TCP/IP communication, Wiegand input/output, and advanced access control features, the SF100 is ideal for offices, factories, schools, warehouses, and commercial buildings. It supports both standalone and network operation modes for flexible deployment.<br><p data-start="167" data-end="792"><span class="" data-state="closed"></span></p>
Technical Description:
| Specification | Details |
|---|---|
| Brand | ZKTeco |
| Model Name/Number | SF100 |
| Product Type | Fingerprint Access Control Terminal |
| Verification Methods | Fingerprint / RFID Card / Password |
| Display | 2.4-Inch TFT Color Screen |
| Fingerprint Capacity | 1,500 Fingerprints |
| Card Capacity | 5,000 Cards (Optional EM/Mifare) |
| Transaction Capacity | 80,000 Logs |
| Fingerprint Sensor | ZK Optical Sensor (500 DPI) |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | TCP/IP, RS485, USB Host |
| Wiegand Signal | Wiegand Input & Output |
| Access Control Interface | Electric Lock, Door Sensor, Alarm, Exit Button, Doorbell |
| Auxiliary Input | 1 AUX Input for Linkage Function |
| Access Modes | Fingerprint / Card / Password / Combination |
| Verification Speed | Less than 1 Second |
| Power Supply | DC 12V / 3A |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% – 80% |
| Installation Type | Wall Mounted |
| Dimensions | 90 × 90 × 34.5 mm |
| Supported Software | ZKAccess / ZKBio CVAccess |
| Usage/Application | Door Access Control & Attendance |
| Warranty | 1 Year |
| Country of Origin | China |
