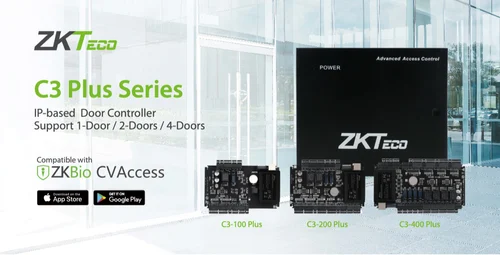

ZKTeco C3-400 Access Controller
| System Type | Controller Based |
| Access Mode | Card + PIN, Card |
| No Of Doors | 4 Doors |
| Brand | ZKTeco |
| Type Of System | RFID Access Control |
| Card Technology | MIFARE, Proximity, HID, UHF, EM 125 kHz |
| Communication | TCP IP |
| User Capacity | Above 50K Users |
| Type | Wired |
| Model Name/Number | C3-400 Plus |
| Usage/Application | Access Controller |
| Reader Type | PIN, Proximity |
| Interfaces | RS232, TCP/IP, Weigand |
| Color | Black |
| Installation Type | Wall Mounted |
| Language | English |
| Connectivity Type | Wired |
| Warranty | 1 Year |
| Push Data | Yes |
Operating System
Linux OS
Hardware
CPU: Single Core @ 1.0GHz
RAM: 128MB
ROM: 256MB
Authentication Method
Card / Password / QR Code
Access Point Capacity
4 Access Points
Reader Capacity
8 × RS-485 Readers (ZKTeco RS-485 / OSDP)
4 × Wiegand Readers (26 / 34 / 66-bit)
IO Expansion Board Capacity
Supports up to 8 pcs EX0808 (RS-485 connection)
Capacities
User Capacity: 100,000
Card Capacity: 100,000 (1:N) (Standard)
QR Code Capacity: 100,000 (Static / Dynamic QR Code)
Transaction Capacity: 500,000 (Standard)
Inputs
4 × Exit Button
4 × Door Status
4 × AUX Inputs
Or 64 (with 8 pcs EX0808 IO expansion board)
Outputs
4 × Form C Relay for Lock
4 × Form C Relay for Aux Output
Or 64 (with 8 pcs EX0808 IO expansion board)
Card Support
Supports up to 66 bits Card Length
QR Code
QR code, PDF417, Data Matrix, MicroPDF417, Aztec (via 3rd-party development projects)
Dynamic QR codes on ZKBio CVAccess mobile application
Communication
TCP/IP × 1
RS-485: ZKTeco RS-485 / OSDP × 1
Wiegand (Input) × 4
USB: Type A (USB Drive Only) × 1
Aux Inputs × 4
Aux Outputs × 4
Electric Lock × 4
Door Sensor × 4
Exit Button × 4
Alarm × 4
Standard Functions
Webserver
Up to 14-digit User ID
Access Levels, Access Groups, Holidays
Anti-passback, Anti-tailgating
Linkage, Global Linkage
Multiple Verification Methods
Access Control Interface
Wiegand (Card Reader)
RS-485 (Card Reader / QR Code Reader)
Power Supply
9.6V – 14.4V DC
Environmental Conditions
Operating Temperature: 0℃ to 45℃
Operating Humidity: 20% – 80% RH (Non-condensing)
Dimensions & Weight
Device Size: 215.88 mm × 99.14 mm × 19.3 mm (L × W × H)
Gross Weight: 0.357 Kg
Net Weight: 0.252 Kg
Supported Software
ZKBio CVAccess
Installation
Wall-mount supported with Metal Enclosure (Optional)
Optional Enclosure
Size: 350 mm × 90 mm × 300 mm (L × W × H)
Material: SPCC steel
Power Supply Unit: Input 110V~240V AC, Output 12V 4A+1A DC
Backup Battery: Space reserved (Recommended size: 151 × 94 × 65 mm)
Gross Weight (with enclosure): 3.56 Kg
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
Factory ID
AC02-C14H-U10
