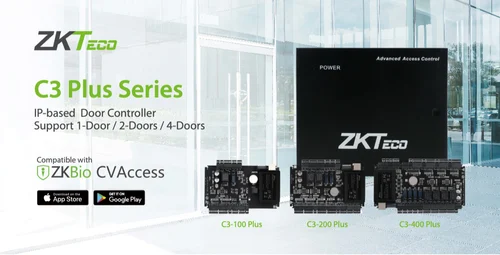

ZKTeco C3-200 Plus Access Controller
<table class=" tbl tble8" style="font-family: Inter, sans-serif; caption-side: bottom; color: rgb(33, 37, 41); font-size: 14px;"><tbody style="border-color: inherit;"><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 130.406px; padding: 4px 0px;">Brand</td><td style="border-color: inherit; border-width: 0px; width: 362.594px; padding: 4px 0px 4px 50px;">ZKTeco</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 130.406px; padding: 4px 0px;">Type</td><td style="border-color: inherit; border-width: 0px; width: 362.594px; padding: 4px 0px 4px 50px;">Wired</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 130.406px; padding: 4px 0px;">Model Name/Number</td><td style="border-color: inherit; border-width: 0px; width: 362.594px; padding: 4px 0px 4px 50px;">C3-200 Plus</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 130.406px; padding: 4px 0px;">Usage/Application</td><td style="border-color: inherit; border-width: 0px; width: 362.594px; padding: 4px 0px 4px 50px;">Multi Access Control</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 130.406px; padding: 4px 0px;">Communication</td><td style="border-color: inherit; border-width: 0px; width: 362.594px; padding: 4px 0px 4px 50px;">TCP/IP</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 130.406px; padding: 4px 0px;">Interfaces</td><td style="border-color: inherit; border-width: 0px; width: 362.594px; padding: 4px 0px 4px 50px;">Weigand, TCP/IP</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 130.406px; padding: 4px 0px;">Language</td><td style="border-color: inherit; border-width: 0px; width: 362.594px; padding: 4px 0px 4px 50px;">English</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 130.406px; padding: 4px 0px;">Connectivity Type</td><td style="border-color: inherit; border-width: 0px; width: 362.594px; padding: 4px 0px 4px 50px;">Wired</td></tr></tbody></table>
C3-200 Plus – Technical Specifications
Operating System
Linux OS
Hardware
CPU: Single Core @ 1.0GHz
RAM: 128MB
ROM: 256MB
Authentication Method
Card / Password / QR Code
Access Point Capacity
2 Access Points
Reader Capacity
4 × RS-485 Readers (ZKTeco RS-485 / OSDP)
4 × 26 / 34 / 66-bit Wiegand Readers
IO Expansion Board Capacity
Supports up to 8 pcs EX0808 (RS-485 connection)
Capacities
User Capacity: 100,000
Card Capacity: 100,000 (1:N) (Standard)
QR Code Capacity: 100,000 (Static / Dynamic QR Code)
Transaction Capacity: 500,000 (Standard)
Inputs
2 × Exit Button
2 × Door Status
2 × AUX Inputs
Or 64 (with 8 pcs EX0808 IO expansion board)
Outputs
2 × Form C Relay for Lock
2 × Form C Relay for Aux Output
Or 64 (with 8 pcs EX0808 IO expansion board)
Card Support
Up to 66 bits Card Length
QR Code
QR code, PDF417, Data Matrix, MicroPDF417, Aztec (via 3rd-party development projects)
Dynamic QR codes on ZKBio CVAccess mobile application
Communication
TCP/IP × 1
RS-485: ZKTeco RS-485 / OSDP × 1
Wiegand (Input) × 4
USB: Type A (USB Drive Only) × 1
Aux Inputs × 2
Aux Outputs × 2
Electric Lock × 2
Door Sensor × 2
Exit Button × 2
Alarm × 2
Standard Functions
Webserver
Up to 14-digit User ID
Access Levels, Access Groups, Holidays
Anti-passback, Anti-tailgating
Linkage, Global Linkage
Multiple Verification Methods
Access Control Interface
Wiegand (Card Reader)
RS-485 (Card Reader / QR Code Reader)
Power Supply
9.6V – 14.4V DC
Environmental Conditions
Operating Temperature: 0℃ to 45℃
Operating Humidity: 20% – 80% RH (Non-condensing)
Dimensions & Weight
Device Size: 175 mm × 99 mm × 19.3 mm (L × W × H)
Gross Weight: 0.296 Kg
Net Weight: 0.190 Kg
Supported Software
ZKBio CVAccess
Installation
Wall-mount supported with Metal Enclosure (Optional)
Optional Enclosure
Size: 350 mm × 90 mm × 300 mm (L × W × H)
Material: SPCC steel
Power Supply Unit: Input 110V~240V AC, Output 12V 4A+1A DC
Backup Battery: Space reserved (Recommended size: 151 × 94 × 65 mm)
Gross Weight (with enclosure): 3.35 Kg
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
Factory ID
AC02-C12H-U10
