Access Control Systems

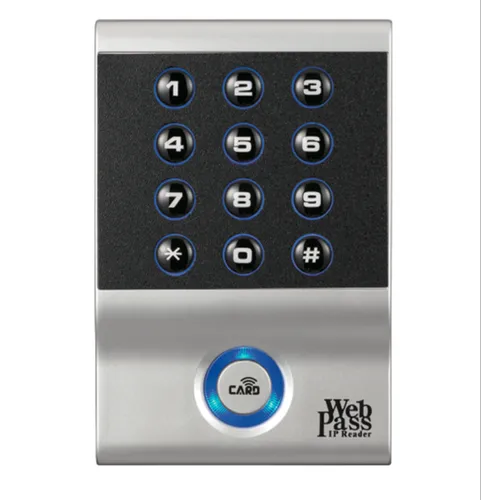

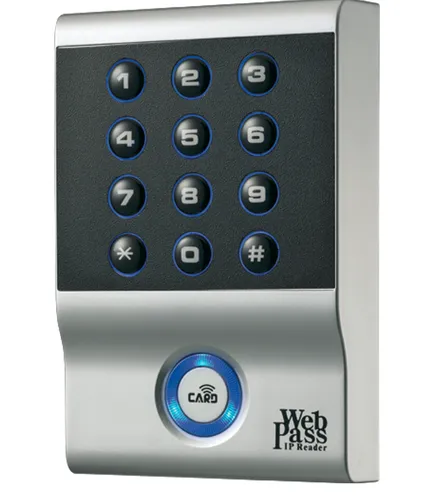

WebPass Proximity RFID Access Control Terminal
35 views
|
SKU: RFID
₹18,000
₹18,000
Save ₹0
· Card Capacity: 20,000
· Verification Mode: Card / Password
· TCP/IP, Wiegand & RS-485
· IP54 Weatherproof Design
· System Log: 1,536 Entries
· Entry Log: 65,535 Entries
· PoE Support: Optional
· Anti-Passback & Anti-Duress
· Size: 120 × 80 × 28 mm
Warranty
1 Year Standard
Delivery
Pan India
Installation
Free Setup
Support
24/7 Available
| Frequency Band | HF 13.56 MHz |
| System Type | Reader Only |
| Application | Access Control |
| Interface | TCP IP |
| Brand | AVTech |
| Brand | AVTech |
| Type Of System | RFID Access Control |
| Reading Range | > 10 m |
| Tag Type | Key Fob |
| Communication | TCP/IP |
| Model Name/Number | WebPass |
| Usage/Application | Access Control |
| Power Supply | 12 Volt 2 Amp |
| Color | Black, White |
| Installation Type | Wall Mounted |
| Language | English |
| Connectivity Type | Wired |
| Warranty | 1 Year |
Standalone, PoE option module, IP65 rated weather proof RFID access controller reader, which can be connected with more than one Webpass readers over single intranet (LAN). Every package of shipped item will be come with SOMAC, which is a proprietary access control management software to manage single or multiple units of Webpass IP Readers in a RFID access control system.
Optional Poe function (Power over Ethernet).Frequency - EM / Mifare / HID.
IP54 Rated Weatherproof Access Controller with POE function.
FEATURES HIGHLIGHTS : -
IP54 Outdoor weather proof reader controller. Multiple card types support (EM / Mifare standard).PoE (Power over Ethernet) function support (option).Inbuilt HTT web server for management.Proprietary software provide for advance management.
PRODUCT SPECIFICATION : -
Verification Mode: Card / Password Software Application: So Mac Card Capacity: 20,000 (50,000 extendable)Communications: TCP/IP, Wiegand/RS485DIO Support: DI: 3 / DO: 1Inbuilt Relays (Max. power loading): Door Lock / Ring (120VAC, 0.5A / 30VDC, 1A)Power Over Ethernet: Yes (Option) (Conjunction box required)Option Accessories: Conjunction box (Wiring / PoE) System Log: 1,536 entries Entry Log: 65,535 entries Time Set / Time Zone / Group: 255 / 120 / 255 Sets Holiday: Yes Remote Control / Event Handle: Yes / YesFast Registry: YesAnt-Pass Back / Anti Duress: Yes / YesPower Consumption: 400mA ± 5%Power Requirement: 9 ~ 24VDC / 1AOperation Temperature: 0°C ~ 65°COperation Humidity: 5% ~ 80% RHDimension / Weight: 120 x 80 x 28mm / 150g
Optional Poe function (Power over Ethernet).Frequency - EM / Mifare / HID.
IP54 Rated Weatherproof Access Controller with POE function.
FEATURES HIGHLIGHTS : -
IP54 Outdoor weather proof reader controller. Multiple card types support (EM / Mifare standard).PoE (Power over Ethernet) function support (option).Inbuilt HTT web server for management.Proprietary software provide for advance management.
PRODUCT SPECIFICATION : -
Verification Mode: Card / Password Software Application: So Mac Card Capacity: 20,000 (50,000 extendable)Communications: TCP/IP, Wiegand/RS485DIO Support: DI: 3 / DO: 1Inbuilt Relays (Max. power loading): Door Lock / Ring (120VAC, 0.5A / 30VDC, 1A)Power Over Ethernet: Yes (Option) (Conjunction box required)Option Accessories: Conjunction box (Wiring / PoE) System Log: 1,536 entries Entry Log: 65,535 entries Time Set / Time Zone / Group: 255 / 120 / 255 Sets Holiday: Yes Remote Control / Event Handle: Yes / YesFast Registry: YesAnt-Pass Back / Anti Duress: Yes / YesPower Consumption: 400mA ± 5%Power Requirement: 9 ~ 24VDC / 1AOperation Temperature: 0°C ~ 65°COperation Humidity: 5% ~ 80% RHDimension / Weight: 120 x 80 x 28mm / 150g
