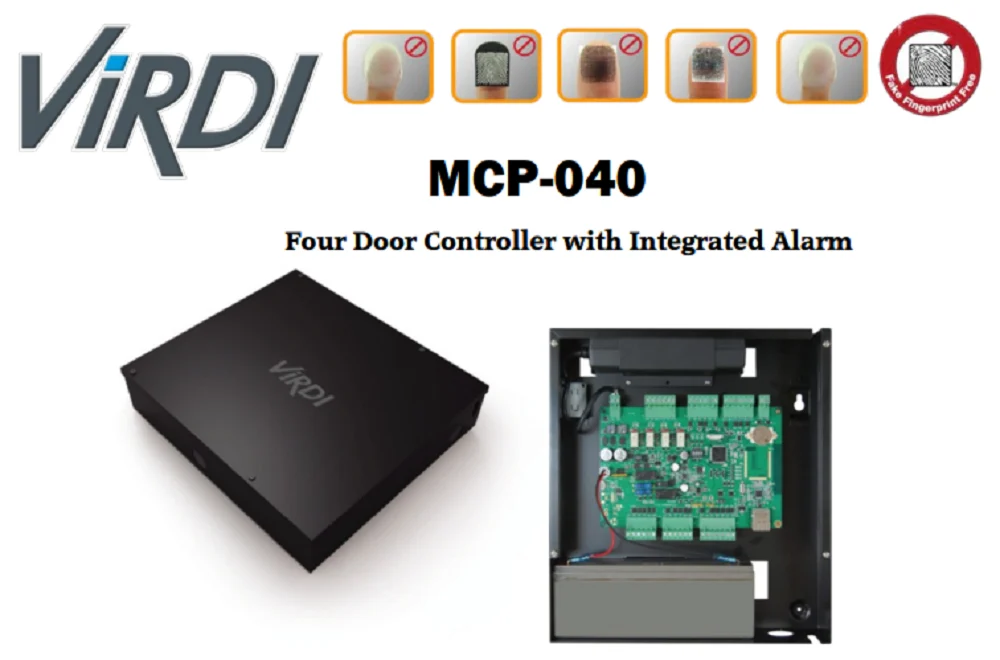

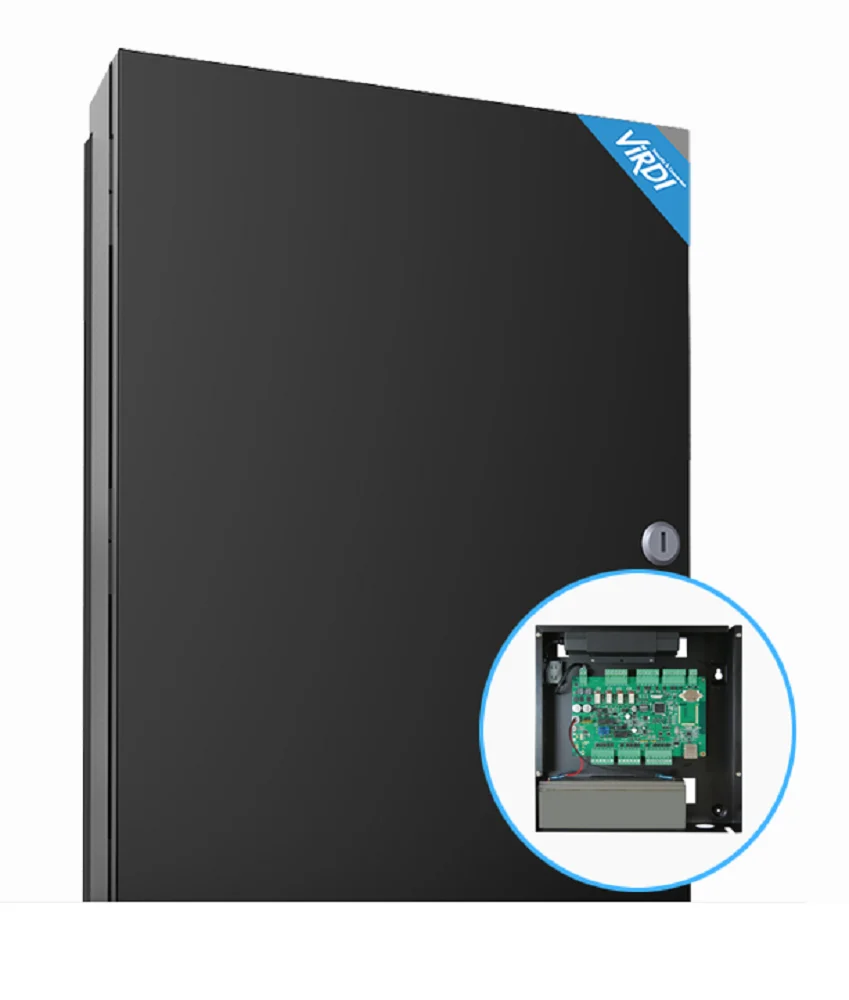

Virdi MCP-040 Four door controller
<table class=" tbl tble20" style="font-family: Inter, sans-serif; caption-side: bottom; color: rgb(33, 37, 41); font-size: 14px;"><tbody style="border-color: inherit;"><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 109.625px; padding: 4px 0px;">Type Of System</td><td style="border-color: inherit; border-width: 0px; width: 383.375px; padding: 4px 0px 4px 50px;">Fingerprint</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 109.625px; padding: 4px 0px;">Interfaces</td><td style="border-color: inherit; border-width: 0px; width: 383.375px; padding: 4px 0px 4px 50px;">TCP/IP</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 109.625px; padding: 4px 0px;">Type</td><td style="border-color: inherit; border-width: 0px; width: 383.375px; padding: 4px 0px 4px 50px;">Wired</td></tr><tr style="border-color: inherit;"><td class="fw6" style="border-color: inherit; border-width: 0px; font-weight: 600; width: 109.625px; padding: 4px 0px;">Model Name/Number</td><td style="border-color: inherit; border-width: 0px; width: 383.375px; padding: 4px 0px 4px 50px;">MCP-040</td></tr></tbody></table>
| Brand | Virdi |
| Event Log | 51200 |
| RFID Users | 50000 |
| Network | 10/100 TCP/IP auto sensing |
| IP Addressing | Static / DHCP |

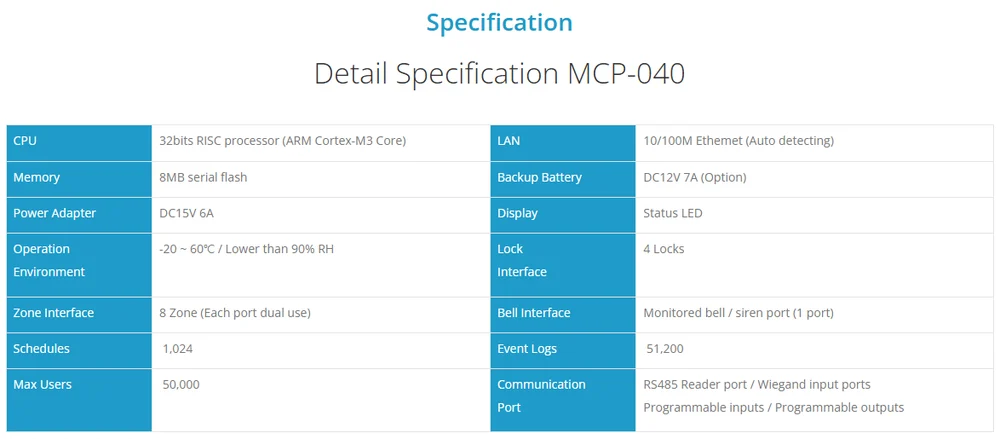

CPU : 32bit RISC ARM Cortex-M3 Core
Memory : 128K SRAM / 8 MByte Serial Flash RTC RTC Support (Liithium Battery)
Schedules : 1024
Event Log : 51200
RFID Users : 50 000
Network : 10/100 TCP/IP auto sensing.
IP Addressing : Static / DHCP
RS-485 : Secure Rolling Code Transmission 2 x Port
RS-485 Addressing : Unit ID per Terminal
Wiegand IN : 4 x Port 26bit, 34bit, Custom
RS-232 : 1 x Port for debug
Lock Interface : 4 Lock, 4 Request to Exit Input Port
Lock Output : 12VDC Max 750mA each
Alarm Input : 4 x Port Zone Doubling (8 Zone) EOL Resistance
Alarm Arm / Disarm : AC2100x Series, AC5000 Series. Per Area. Auto Arm, Force Arm
Bell Interface : Monitored Siren / Bell Output
Programmable Outputs : 8 Programmable Outputs NO/NC dry contact
Status Display : Status LED
Power Supply : 13~15VDC 5A +/- 10%
Battery Backup : 12V 7A/h (not included)
Operating Temperature : -20 ~ 60C Max 90% RH
Management/Reporting : UNIS v3.1.1 , EasyTimePay (AVTech) and later
Biometric Terminals / Readers : AC2100 AC2100H AC5000 AC-R20D
