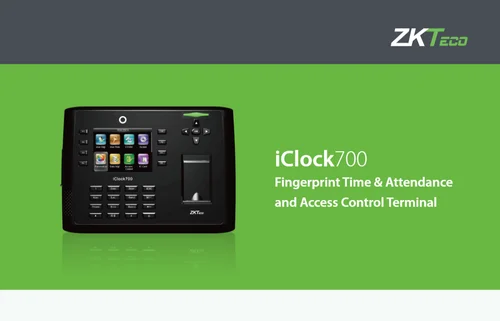

ICLOCK700 Fingerprint Time & Attendance and Access Control Terminal
·
3.5-inch TFT Color Display
·
8,000 Fingerprint Capacity
·
10,000 Card Capacity (Optional
ID/IC/HID)
·
200,000 Transaction Capacity
·
TCP/IP, USB Host, and RS232/485
(Optional Wi-Fi or GPRS)
· Wiegand In & Out
·
Built-in Backup Battery
·
DC 12V/3A Power Supply
·
Dimensions: 220 × 202 × 47 mm
| Authentication Method | Fingerprint |
| Authentication Method | Password |
| Authentication Method | RFID Card |
| Type | Time & Attendance with Access Control |
| Brand | ZKTeco |
| Products Included | Machine |
| Connectivity | TCP/IP |
| Connectivity | USB |
| Transaction Storage | 200000 |
| Display Type | Keypad |
| Display Type | LCD |
| Display Type | LED |
| Connectivity Type | Wired |
| Additional Authentication | Password |
| Additional Authentication | RFID Card |
| Language | English |
| Interfaces | TCP/IP |
| Interfaces | Weigand |
| Installation Type | Wall Mounted |
| Screen Size | 2.8 inch |
| User Capacity | 40000 |
| Biometric Technology | Fingerprint |
| Features | Access Control |
Minimum order quantity: 1 Piece

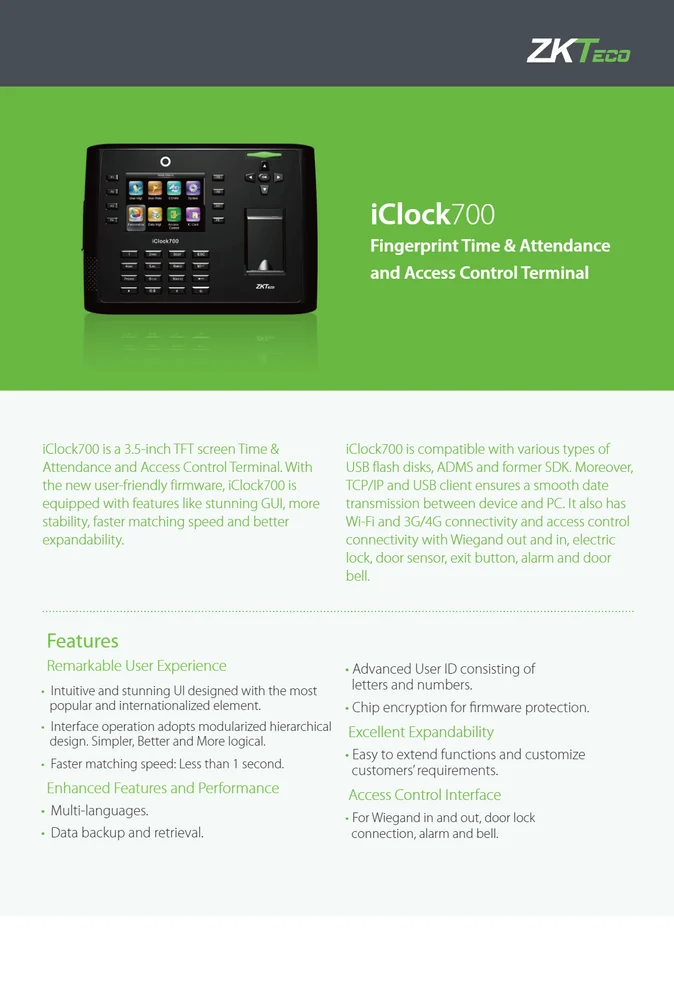

iClock700 is compatible with various types of USB flash disks, ADMS and former SDK. Moreover,RS232/485, TCP/IP
and USB client ensures a smooth date transmission between device and PC.
It also has GPRS,Wi-Fi and 3G connectivity and access control connectivity with Wiegand out and in, electric lock,
door sensor, exit button,alarm and Door Bell.
Technical Specifications
Fingerprint Capacity : 30,000
Record Capacity : 200,000
Display : 3.5-inch TFT Screen
Communication : TCP / IP, RS485 / RS232*, USB-host / USB-Client (optional)
Power Supply : DC 12V 3A
Supported Software : ZKBioTime.Net / ZKBio Time
Verification Speed : ≤1 Sec.
Operating Temperature : 0°C - 45°C
Operating Humidity : 20% - 80%
Gross Weight : 1.94 kg
