C3-100 Plus Professional Access Controller
93 views
|
SKU: ZK-C3100-001
₹22,500

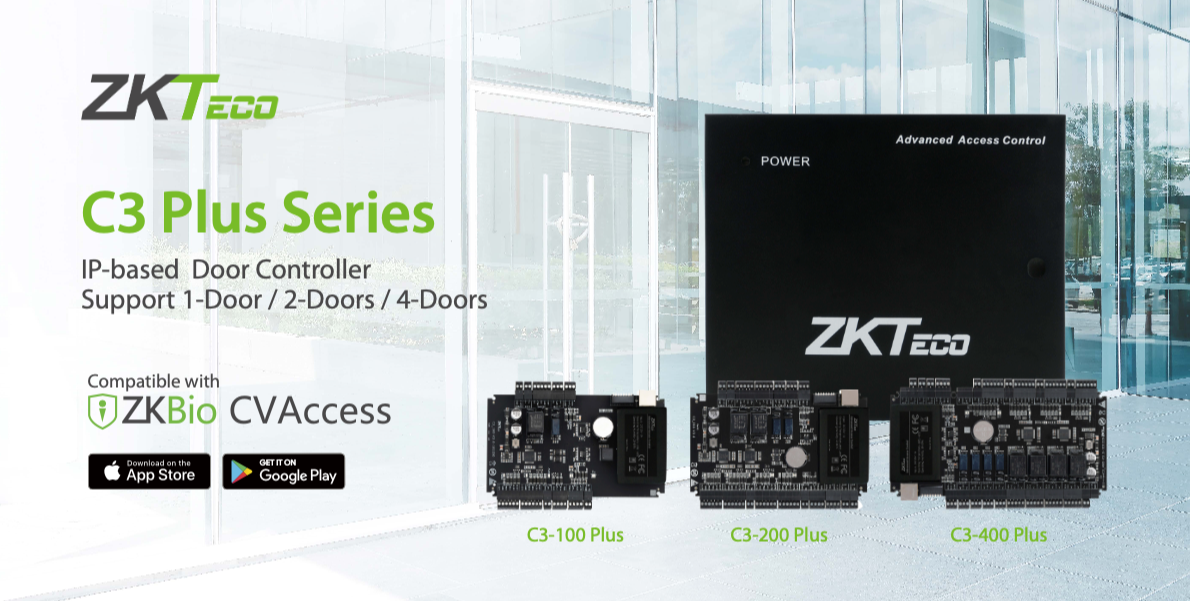

ZKTeco RFID access control system for professional installations. The ZKTeco C3-100 Plus is a professional IP-based access control panel designed for secure and scalable door management solutions. It supports RFID card authentication, dynamic QR code verification, password authentication, and seamless integration with third-party readers through Wiegand and RS-485 interfaces. Built for small to medium-sized enterprises, the controller offers advanced encryption security, large user capacity, and flexible access management for offices, factories, warehouses, commercial buildings, and institutions.
Warranty
1 Year Standard
Delivery
Pan India
Installation
Free Setup
Support
24/7 Available
Technical Description:
| Specification | Details |
|---|---|
| Brand | ZKTeco |
| Model Name/Number | C3-100 Plus |
| Product Type | Professional Access Controller |
| Access Point Capacity | 1 Door |
| Authentication Methods | RFID Card / QR Code / Password |
| User Capacity | 100,000 Users |
| Card Capacity | 100,000 Cards |
| QR Code Capacity | 100,000 QR Codes |
| Transaction Capacity | 500,000 Logs |
| Operating System | Linux OS |
| CPU | Single Core 1.0 GHz |
| Memory | 128MB RAM / 256MB ROM |
| Reader Support | RS-485 Readers / Wiegand Readers |
| Wiegand Format | W26 / W34 / W66 |
| Reader Capacity | 2 RS-485 Readers & 2 Wiegand Readers |
| Communication | TCP/IP, RS-485, USB Type-A |
| Encryption Security | AES 256-bit & AES 128-bit |
| Supported Protocol | OSDP Ver 2.1.7 |
| Input Ports | Exit Button, Door Sensor, AUX Input |
| Output Ports | Lock Relay, AUX Output, Alarm Output |
| Access Control Functions | Anti-Passback, Anti-Tailgating, Linkage |
| Power Supply | 9.6V – 14.4V DC |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% – 80% RH |
| Installation Type | Wall Mount |
| Dimensions | 175 × 99 × 19.3 mm |
| Gross Weight | 0.263 Kg |
| Net Weight | 0.158 Kg |
| Supported Software | ZKBio CVAccess |
| Certifications | ISO9001, ISO14001, CE, FCC, RoHS |
| Usage/Application | Access Control Management |
| Warranty | 1 Year |
| Country of Origin | China |
